Question #73331
A series resonant band-stop filter consists of a 68 Ω resistor, a 110 mH coil, and a 0.02 µF capacitor. The internal resistance, RW, of the coil is 4 Ω. Input voltage is 200 mV. Output voltage is taken across the coil and capacitor in series. What is the output voltage magnitude at f0?
Options:
Answer:
A series resonant band-stop filter consists of a 68 Ω resistor, a 110 mH coil, and a 0.02 µF capacitor. The internal resistance, RW, of the coil is 4 Ω. Input voltage is 200 mV. Output voltage is taken across the coil and capacitor in series. What is the output voltage magnitude at f0 11.1 mV.

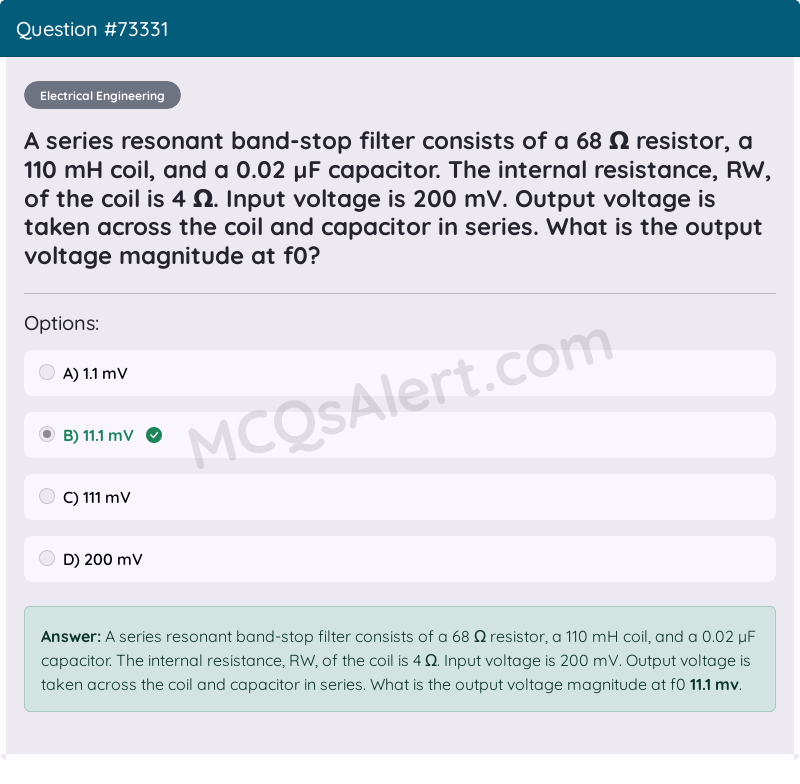

Question Screenshot
