Question #73350
The parallel combination of a 470 Ω resistor and a 680 Ω resistor is in series with the parallel combination of four 2 kΩ resistors. The total resistance is___________?
Options:
Answer:
The parallel combination of a 470 Ω resistor and a 680 Ω resistor is in series with the parallel combination of four 2 kΩ resistors. The total resistance is 778 Ω.

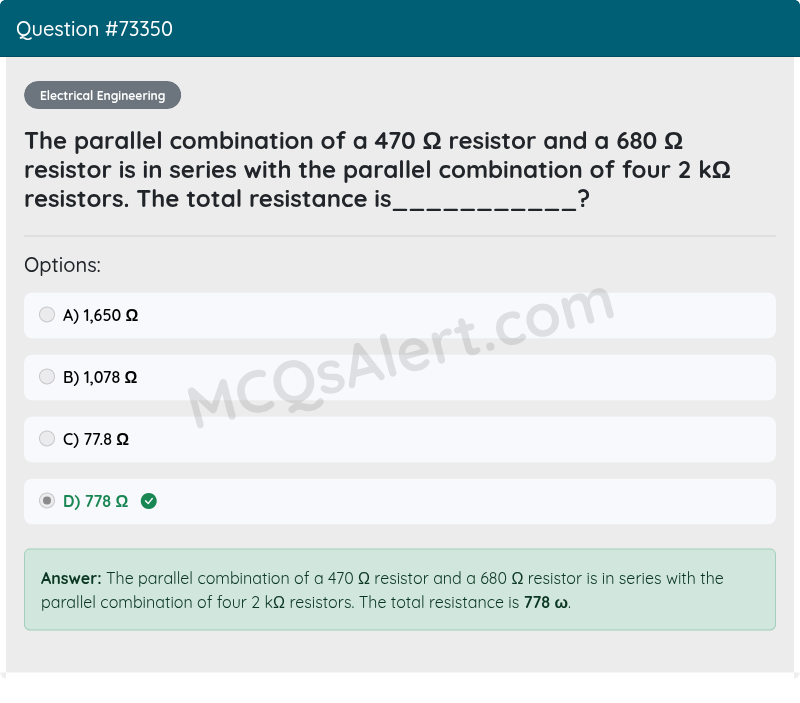

Question Screenshot
