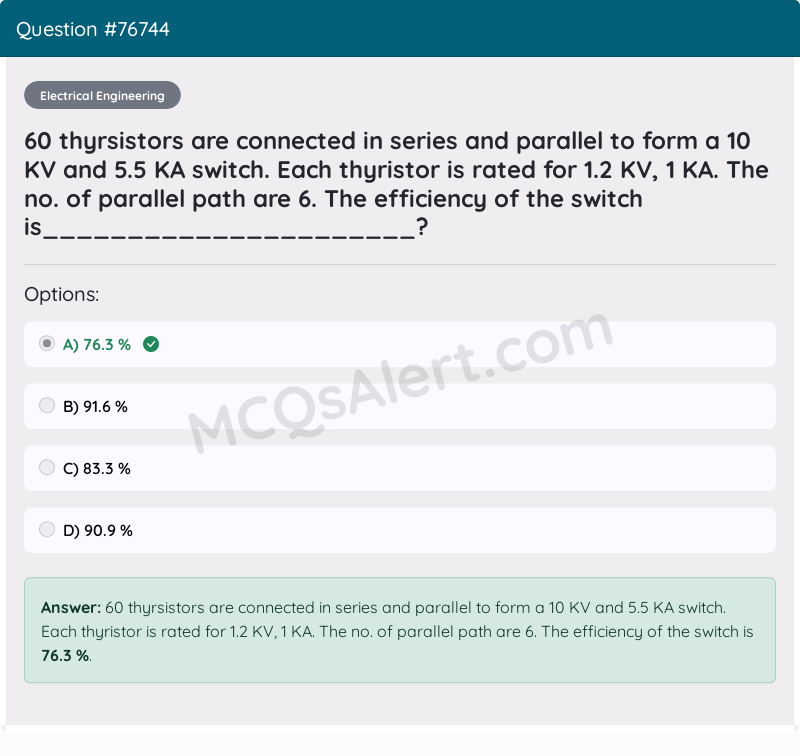

Question #76744

60 thyrsistors are connected in series and parallel to form a 10 KV and 5.5 KA switch. Each thyristor is rated for 1.2 KV, 1 KA. The no. of parallel path are 6. The efficiency of the switch is______________________?

Options:

A) 76.3 %

B) 91.6 %

C) 83.3 %

D) 90.9 %

Answer: 60 thyrsistors are connected in series and parallel to form a 10 KV and 5.5 KA switch. Each thyristor is rated for 1.2 KV, 1 KA. The no. of parallel path are 6. The efficiency of the switch is 76.3 %.
