Question #78707
The horizontal deflection of a parabolic curved beam of span 10 m and rise 3 m when loaded with a uniformly distributed load l t per horizontal length is (where Ic is the M.I. at the crown, which varies as the slope of the arch)___________________?
Options:
Answer:
The horizontal deflection of a parabolic curved beam of span 10 m and rise 3 m when loaded with a uniformly distributed load l t per horizontal length is (where Ic is the M.I. at the crown, which varies as the slope of the arch) 200/EIc.

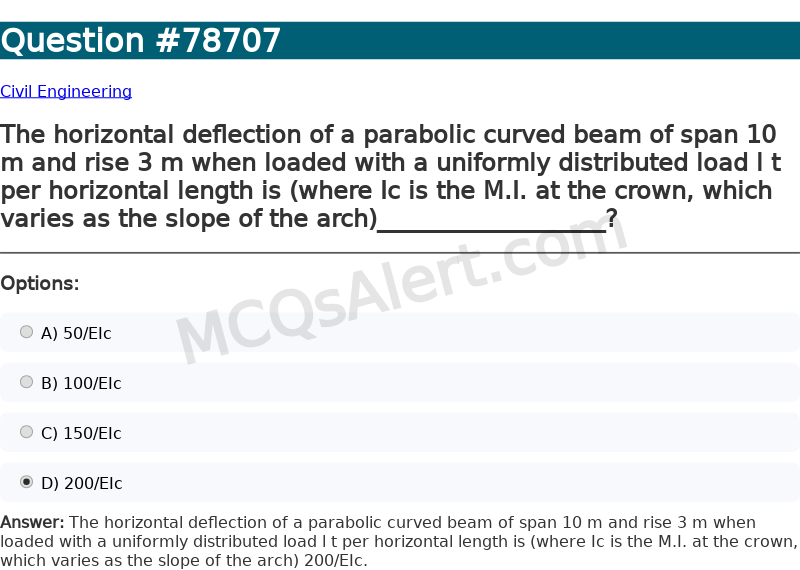

Question Screenshot
