Question #78775
A simply supported beam A carries a point load at its mid span. Another identical beam B carries the same load but uniformly distributed over the entire span. The ratio of the maximum deflections of the beams A and B, will be________________?
Options:
Answer:
A simply supported beam A carries a point load at its mid span. Another identical beam B carries the same load but uniformly distributed over the entire span. The ratio of the maximum deflections of the beams A and B, will be 8/5.

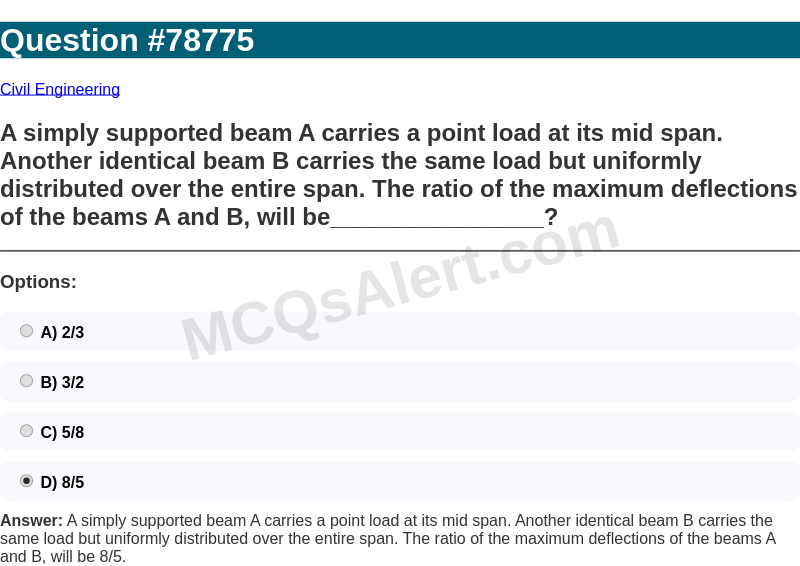

Question Screenshot
